隔膜阀

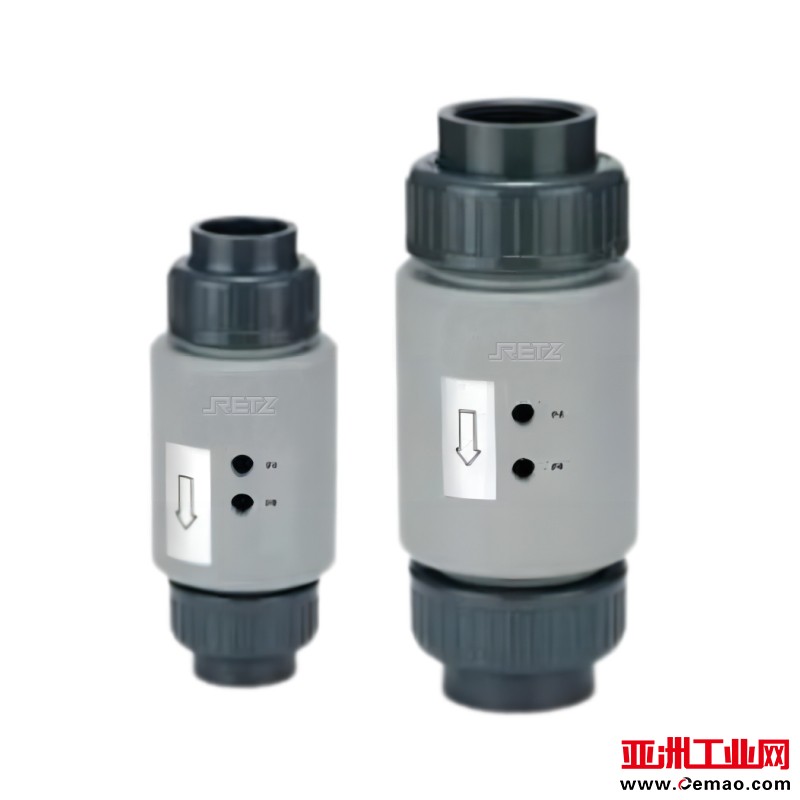

进口PVC快速泄水阀 塑料紧急排放阀
2023-12-18 12:39
价格:¥0.00/台
品牌:RETZ瑞茨
品牌:RETZ
产地:美国
包装:木箱
起订:1台
供应:1000台
发货:15天内
发送询价
 RETZ/我们一直致力于流体控制领域的持续创新,始于2005……进口PVC快速泄水阀、塑料紧急排放阀采用紧凑的设计,并在洁净的环境下装配成型,主要功能是保护管路的安全,当水压过大的时候会自动排水,减轻管路的压力retz The imported PVC quick drain valve and plastic emergency drain valve adopt a compact design and are assembled and formed in a clean environment. Their main function is to protect the safety of the pipeline. When the water pressure is too high, they will automatically drain, reducing the pressure on the pipeline

进口PVC快速泄水阀尺寸与流量特性 Size and flow characteristics

快速排水阀孔径

Φ25

Φ40

Φ40

Φ65

Φ65

Φ80

适用管道外直径

Φ32

Φ38

Φ48

Φ60

Φ75

Φ89

流量系数Cv

10

22

51

83

153

198

进口PVC快速泄水阀技术参数 Technical Parameter

产品名称

 PVC快速泄水阀

介质要求

 去离子水、超纯水、酸、碱(化学液体)

限孔直径

 Φ25、Φ40、Φ65、Φ80

适用管道外直径

 Φ32~Φ89

流量系数Cv

 10~198

流体压力

 Φ16:0~0.3 MPa

Φ22:0~0.4 MPa

环境压力

 1 MPa

操作压力

 0~0.02 MPa

先导压力

 0.3~0.5 MPa

返回压力

 常闭型:≤ 0.2 MPa

常开型:≤ 0.2 MPa

双作用型:≤ 0.3 MPa

阀门泄露

 0

介质温度

 0~+60℃(不结露)

环境温度

 0~+60℃

材质

 机身:PVC

阀体:PTFE
 O
型环:FKM、EPDM

RETZ的隔膜阀可以满足工控系统的截断、调节、防腐、粘性流体、纤维质流体、泥浆、污泥、悬浮固态物、卫生洁净等流体的控制RETZ's diaphragm valve can meet the requirements of industrial control systems for cutting off, regulating, anti-corrosion, viscous fluid, fibrous fluid, mud, sludge, suspended solids, hygiene, and other fluid control

产品涵盖了:进口气动隔膜阀、电动隔膜阀、衬胶隔膜阀、衬氟隔膜阀、直通式隔膜阀、角式隔膜阀、美标隔膜阀、德标隔膜阀、日标隔膜阀、英标隔膜阀、搪玻璃隔膜阀、真空隔膜阀、不锈钢隔膜阀、卫生级隔膜阀、无衬里隔膜阀、PVC隔膜阀、PFA高洁净氟塑料隔膜阀、高纯膜片阀The products cover: imported pneumatic diaphragm valves, electric diaphragm valves, rubber lined diaphragm valves, fluorine lined diaphragm valves, straight through diaphragm valves, angle diaphragm valves, American standard diaphragm valves, German standard diaphragm valves, Japanese standard diaphragm valves, British standard diaphragm valves, glass lined diaphragm valves, vacuum diaphragm valves, stainless steel diaphragm valves, sanitary grade diaphragm valves, unlined diaphragm valves, PVC diaphragm valves, PFA high cleaning fluorine plastic diaphragm valves, high-purity diaphragm valves

富林克致力于作为流体控制专家,负责中国地区RETZ产品的营销管理和服务,从而创造价值的企业,RETZ以“坚持更好的品质”为根本,以“持续实现具有创造性、高品质产品和服务的企业价值,为当今社会的繁荣作出贡献”为企业理念。
