价格:￥0.00/台
品牌:RETZ瑞茨
品牌:RETZ
产地:美国
包装:木箱
起订:1台
供应:1000台
发货:15天内

发送询价

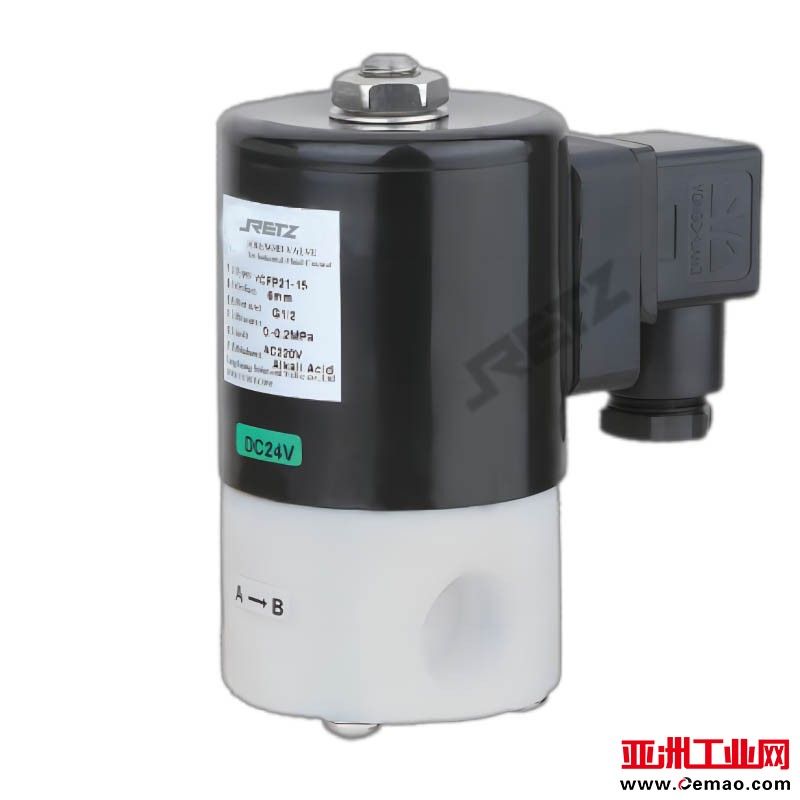

 进口塑料王电磁阀 耐腐蚀 耐酸碱 PTFE电磁阀 RETZ品牌

品牌：RETZ/我们一直致力于流体控制领域的持续创新，始于2005……

耐腐蚀塑料王电磁阀采用聚四氟乙烯为原材料制造,几乎适用于各种腐蚀性液体、化学液体、酸碱、盐酸、硝酸、醋酸等各种腐蚀性介质管道作自动化控制The Retz corrosion-resistant plastic king solenoid valve is manufactured using polytetrafluoroethylene as the raw material, and is almost suitable for automatic control of various corrosive media pipelines such as chemical, acid-base, hydrochloric acid, nitric acid, acetic acid, etc

特 征: 隔离膜片式结构，聚四氟乙烯阀体防腐 Features: Isolation diaphragm structure, PTFE valve body anti-corrosion

进口塑料王电磁阀工作原理--Working principle of imported plastic king solenoid valve

常闭式：当线圈通电时，电磁阀打开。当线圈断电时，电磁阀关闭 Normally closed: When the coil is energized, the solenoid valve opens. When the coil is de-energized, the solenoid valve closes

进口塑料王电磁阀选型参数--

流体温度: 聚四氟乙烯: -20℃ 200℃

压 力: 0MPa ~ 0.6MPa

连接尺寸: 1/8", 1/4", 3/8", 1/ 2"

螺 纹: G螺纹, NPT螺纹，M8×1

电 压: DC - 12V, 24V 、AC - 24V, 120V, 240V/60Hz; 110V, 220V/50Hz

范 围: ±10%

材 料: 阀体- 聚四氟乙烯

密封件- 聚四氟乙烯

隔磁管- 不锈钢304

动铁芯- 不锈铁430F

静铁芯- 不锈铁430F

弹簧- 不锈钢304

分磁环- 紫铜
