CMP带胶泥密封防爆格兰（PXSS2K系列）
2025-02-06 09:46
价格:￥698.60/只
品牌:CMP
起订:10只
供应:500只
发货:60天内
立即购买

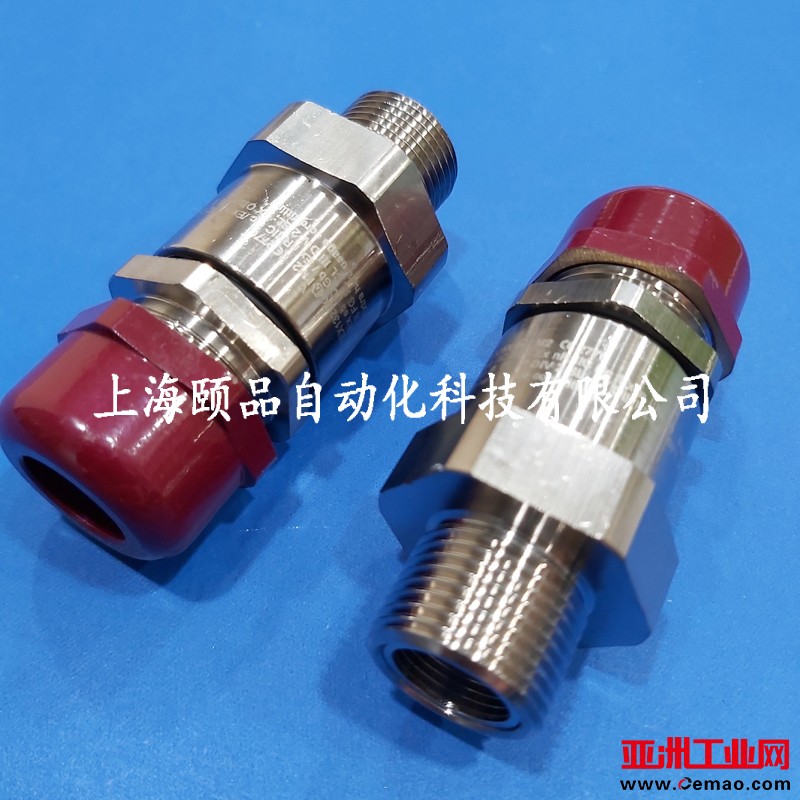

CMP带胶泥密封防爆格兰（PXSS2K系列）
PXSS2K-US | Class I, Div 1 & 2 | AEx e, AEx d, AEx nR, AEx ta
| Hazardous Location Barrier Cable Gland

CMP防爆格兰（CMP Cable Gland）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
CMP防爆格兰代理商：上海颐品自动化科技有限公司
关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司


PXSS2K-US | Class I, Div 1 & 2 | AEx e, AEx d, AEx nR, AEx ta
| Hazardous Location Barrier Cable Gland
For all types of Unarmoured & Braided Armour Cables
Globally Approved, Hazardous (Classified) Location Barrier Cable Gland
• Direct & remote installation
• Superior levels of cable retention
• Displacement type environmental seal
• Compound barrier type flameproof seal
• Deluge protected
• Disconnectable, union feature design
• -76°F to 185°F / -60°C to 85°C
• Globally marked, UL, cCSAus, IECEx & ATEX
• As standard in nickel plated brass with NPT thread form
• once any cable inner sheath/bedding has been removed, the RapidEx liquid resin barrier seals directly around the internal cable cores, completely eliminating any risk of coldflow on all cable types

PRODUCT SELECTION TABLE:

Combined Ordering Reference (*Nickel Plated Brass NPT) Available Entry Threads 'C'
(Alternative Metric Thread Lengths Available)		 Number of Cores Diameter Over Conductors
'A'		 Cable
Bedding Diameter
'G'		 Overall Cable Diameter 'B' Across Flats 'D' Across Corners 'D' Protrusion Length 'F' Shroud Approx Weight Aluminum (oz)
Size Type Ordering Suffix NPT NPT
(Option)		 Metric
(Option)		 Thread Length (NPT) 'E' Max Max Max Min Max
20S16 PXSS2K 1RA531 ½" ¾" M20 0.78 21 0.34 0.34 0.12 0.34 1.18 1.30 2.09 PVC06 7.06
20S PXSS2K 1RA531 ½" ¾" M20 0.78 21 0.46 0.46 0.24 0.46 1.18 1.30 2.09 PVC06 7.06
20 PXSS2K 1RA531 ½" ¾" M20 0.78 21 0.50 0.51 0.26 0.55 1.18 1.30 2.13 PVC06 7.06
20L PXSS2K 1RA531 ½" ¾" M20 0.78 21 0.50 0.51 0.39 0.63 1.18 1.30 2.13 PVC06 7.06
25 PXSS2K 1RA532 ¾" 1" M25 0.80 30 0.69 0.70 0.44 0.79 1.42 1.56 2.36 PVC09 11.64
32 PXSS2K 1RA533 1" 1 ¼" M32 0.98 38 0.93 0.94 0.67 1.04 1.61 1.78 2.41 PVC10 13.76
32L PXSS2K 1RA533 1" 1 ¼" M32 0.98 38 0.93 0.94 0.79 1.08 1.61 1.78 2.41 PVC10 13.76
40 PXSS2K 1RA534 1 ¼" 1 ½" M40 1.01 59 1.18 1.19 0.87 1.26 1.97 2.17 2.46 PVC13 19.75
50S PXSS2K 1RA535 1 ½" 2" M50 1.03 89 1.44 1.45 1.16 1.50 2.17 2.38 2.57 PVC15 23.28
50 PXSS2K 1RA536 2" 2 ½" M50 1.06 115 1.61 1.63 1.40 1.73 2.76 3.03 2.66 PVC18 25.75
63S PXSS2K 1RA536 2" 2 ½" M63 1.06 115 1.89 1.91 1.58 1.97 2.76 3.03 2.80 PVC21 37.74
63 PXSS2K 1RA537 2 ½" 3" M63 1.57 115 2.11 2.13 1.86 2.20 3.15 3.03 2.77 PVC23 37.39
75S PXSS2K 1RA537 2 ½" 3" M75 1.57 140 2.36 2.37 2.08 2.44 3.15 3.47 2.97 PVC25 45.86
75 PXSS2K 1RA538 3" 3 ½" M75 1.63 140 2.53 2.54 2.33 2.67 3.94 4.33 2.95 PVC27 45.86
90 PXSS2K 1RA539 3 ½" 4" M90 1.69 140 2.96 2.98 2.62 3.13 4.25 4.68 3.73 PVC31 106.53
100 PXSS2K 1RA539 3 ½" 4" M100 1.69 200 3.29 3.30 2.99 3.58 4.84 5.33 3.40 LSF33 141.10
*Note : For material options please change the suffix in the ordering reference ; Brass (no suffix required), Nickel Plated Brass “5” (as standard), 316 Grade Stainless Steel “4”, Copper Free Aluminum “1”
For NPT options please change the following digits after the material suffix ; ½” = 31, ¾” = 32, 1” = 33, 1 ¼” = 34, 1 ½” = 35, 2” = 36, 2 ½” = 37, 3” = 38, 3 ½” = 39 (Brass requires prefix “0”)
Examples: 32PXSS2K1RA534 = Nickel Plated Brass 1 ¼” NPT, 25PXSS2K1RA432 = Stainless Steel ¾” NPT, 20PXSS2K1RA5 Nickel Plated Brass M20
Dimensions displayed in inches unless otherwise stated

TECHNICAL ILLUSTRATION
