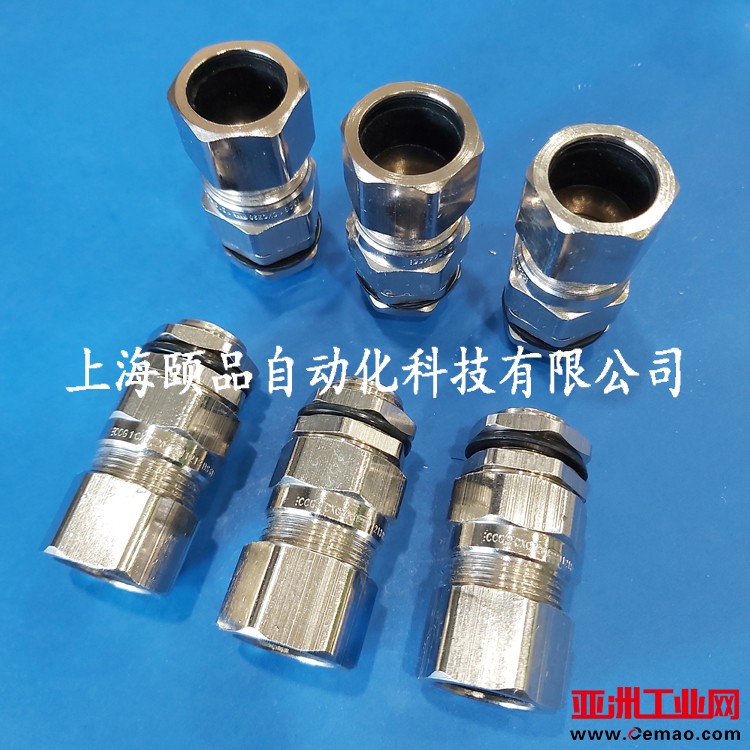

CCG铠装防爆格兰密封接头（0523-E1EX系列）
Variable Dual Seal™ for Steel and Aluminium Armoured Cable
CCG防爆格兰系列（CCG Cable glands）
Hazardous Area Cable Glands-Group II/III
CCG防爆格兰代理商：上海颐品自动化科技有限公司
关键词：CCG防爆格兰，CCG防爆变径，CCG防爆堵头，CCG防爆呼吸阀，CCG防爆接线箱
CCG防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司
Ex db IIC, Ex eb IIC, Ex tb IIIC, Ex nR IIC
Variable Dual Seal™ for Steel and Aluminium Armoured Cable
Features and Benefits
For indoors, outdoors, Group II, III, Zone 1, 2, 21 and 22 hazardous areas.
Two part handling, no loose parts.
Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire and aluminium armour.
Patented disconnect system allows for inspection of armour clamp and inner seal after assembly.
With a patented Variable Deluge Seal™ as standard.
Factory fitted with a specially formulated elastomeric seal for Built-in Safety™, seals on the inner and outer sheath of the cable to IP65/66/68.
Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
Complete with thread sealing gasket
Optional Accessories / Tools
| Code | Min (A) | Max (A) | Min (B) | Max (B) | Length (L2) | Min (F) | Max (F) | Entry Thread (C) |
Length (L1) |
| 052316E1EX | 3 | 8.5 | 8 | 13.5 | 75 | 0.2 | 1.25 | M16 x 1.5 | 15 |
| 052300E1EX | 3 | 8.5 | 8 | 13.5 | 75 | 0.2 | 1.25 | M20 x 1.5 | 15 |
| 0523-0E1EX | 7 | 12 | 11.5 | 16 | 75 | 0.2 | 1.25 | M20 x 1.5 | 15 |
| 052301E1EX | 9 | 15 | 14.5 | 20.5 | 78 | 0.2 | 1.25 | M20 x 1.5 | 15 |
| 052302E1EX | 14 | 20 | 20.5 | 26.5 | 85 | 0.2 | 1.6 | M25 x 1.5 | 15 |
| 052303E1EX | 19 | 26.5 | 26.5 | 33.5 | 91 | 0.2 | 2 | M32 x 1.5 | 15 |
| 052304E1EX | 26 | 34 | 33 | 42.5 | 108 | 0.3 | 2 | M40 x 1.5 | 15 |
| 052305E1EX | 34 | 44.5 | 42.5 | 52.5 | 117 | 0.4 | 2.5 | M50 x 1.5 | 15 |
| 052306E1EX | 44 | 56.5 | 52.5 | 65.5 | 145 | 0.4 | 2.5 | M63 x 1.5 | 15 |
| 052307E1EX | 56 | 67.5 | 65.5 | 78 | 153 | 0.4 | 3.15 | M75 x 1.5 | 15 |
| 052308E1EX | 59 | 69 | 65 | 77.5 | 215 | 2.5 | 3.15 | M80 x 2.0 | 20 |
| 052309E1EX | 74 | 81.5 | 82 | 91 | 224 | 3 | 3.5 | M90 x 2.0 | 20 |
| 052310E1EX | 81 | 91 | 90 | 100 | 229 | 3 | 3.5 | M100 x 2.0 | 20 |
