1. Overview
ASL100-Fx/x series of smart panel module (hereinafter referred to as smart panel) is the Acrel-bus input control module. This product meets the rules of Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. European KNX communication bus is adopted to achieve smart lighting control in the large buildings and public buildings. The latest single-chip microcomputer technology is adopted by the module. Thus, the module is highly stable and reliable. Matched with other modules, such as switch driver and dimming driver, this module can realizes smart lighting control. This module controls the strong current by the weak current. 30V bus voltage at the communication end is used to power on the module and used for system communication.
2. Specification and model

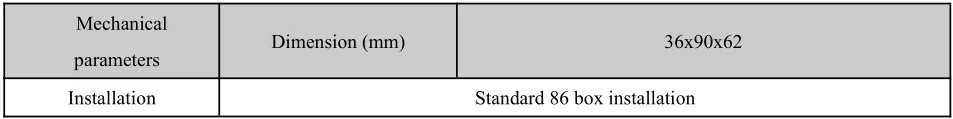

3. Technical parameters

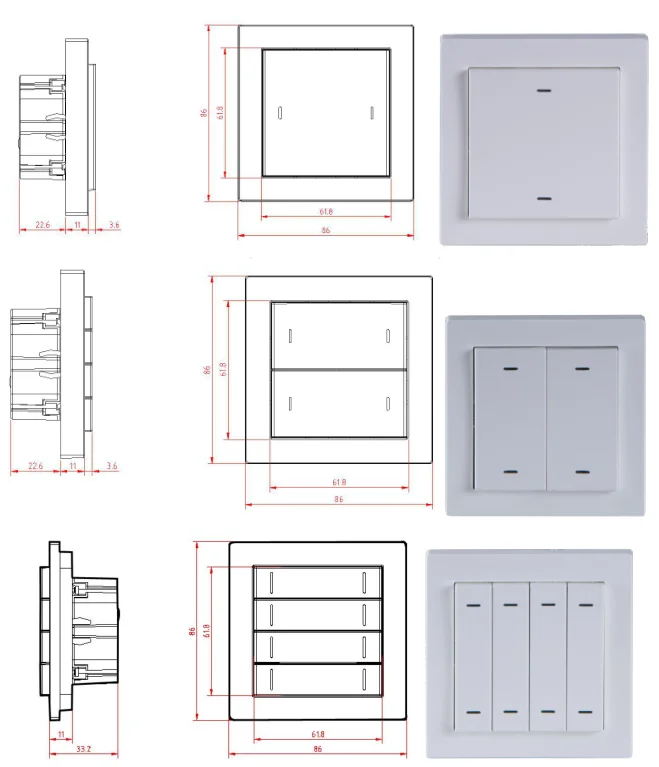

4. Configuration
5. Electric wiring diagram
KNX bus terminal: positive in red, negative in black.
Running and programming indicator
Programming key
6. Application guide
The series of smart panel has three options: one cascade two keys, two cascades four keys, four cascades eight keys. The panel is connected with the system by the standard wiring terminal and KNX bus cable without additional power module. All functions on the smart panel are imported VD3/VD4 into ETS. Then, the corresponding functions are selected by changing all parameters.
The series of smart panel has functions as follows:
Switch function
Dimming control
Shutter control
Send value function
Scene control function
