1  Overvie
AEW 100 wireless measurement module is mainly used for metering three phase active energy on low voltage network. There are functions like RS485 communication and wireless communication on 470MHz in order to help customers check, get and manage the value of energy consumption. This kind of production has the advantage of higher accuracy, more compact and easy installing. It can be installed in distribution box flexibly, achieving the different demand of measurement and statistics of distribution on different areas and different loadings.



2 Product specification

Naming rule of main part















Note:
1. Type D10 and D15 do not adapt the function of temperature measurement;
2. There is a mobile antenna lay outside can be chosen, and the length of wire is 2 meters.



3 Technical parameter
3.1  Wireless measurement module

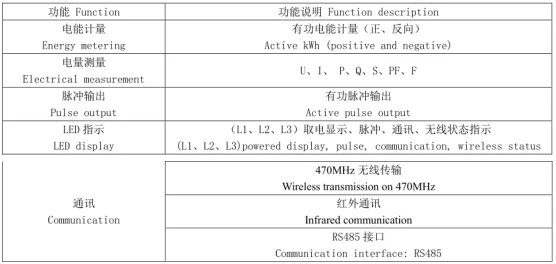

Chart 2 Main function



3.2 Electrical performance

Chart 3 Electrical performance



4  Dimension and installing description (Unit: mm)
4.1 Dimension drawings (Unit: mm)

Chart 5 Dimension of mutual inductor

Fig 5 Dimension of mutual inductor AKH-0.66/K-10



4.2 Installing description





1 The mutual inductor adapts the specification of AKH-0.66/K-20 and AKH-0.66/K-36. L1, L2, L3 prick in to A, B, C phase respectively, and especially the A phase and N terminal powered for the AEW100. And A, B, C phase transmits the voltage and current to AEW100 by mutual inductor, and then the AEW100 transmits the single to PC via RS485.
2 The mutual inductor adapts the specification of AKH-0.66/K-10 and AKH-0.66/K-15.

3-phase 4-wire (voltage and current connected via CT)

5 Operating and display
There are 6 LED lights on the surface of the meter represent for L1, L2, L3, pulse, communication, wireless respectively.
L1 light on means L1 phase powered;
L2 light on means L2 phase powered;
L3 light on means L3 phase powered;
Pulse light on each time means one electric pulse output;
Communication light will flash while communicating via RS485;
Wireless light will flash while communicating via wireless module.
