TDK电容C2012C0G2E272J125AA_电容器_电子元件_电子信息网_产品供应

TDK电容C2012C0G2E272J125AA

2024-10-24 09:16

价格:￥0.30/只
品牌:C2012C0G2E272J125AA 0805 C0G 250V 2.7NF 5%
额定电压:250V
容量:2.7NF
容差:5%
起订:2000只
供应:999999只
发货:3天内

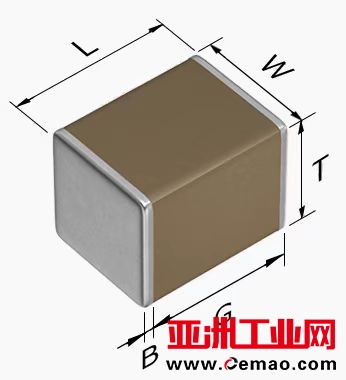

长度(L)	2.00mm ±0.20mm
宽度(W)	1.25mm ±0.20mm
厚度(T)	1.25mm ±0.20mm
端子宽度(B)	0.20mm Min.
端子间隔(G)	0.50mm Min.
推荐焊盘布局(PA)	1.00mm to 1.30mm(Flow Soldering) 0.90mm to 1.20mm(Reflow Soldering)
推荐焊盘布局(PB)	1.00mm to 1.20mm(Flow Soldering) 0.70mm to 0.90mm(Reflow Soldering)
推荐焊盘布局(PC)	0.80mm to 1.10mm(Flow Soldering) 0.90mm to 1.20mm(Reflow Soldering)
