TDK电容C3216X6S1A476M160AC

2024-08-26 18:18

价格:￥0.80/只
品牌:TDK电容C3216X6S1A476M160AC 1206 X6S 10V 47UF 20%
额定电压:10V
容量:47UF
容差:20%
起订:2000只
供应:999999只
发货:3天内

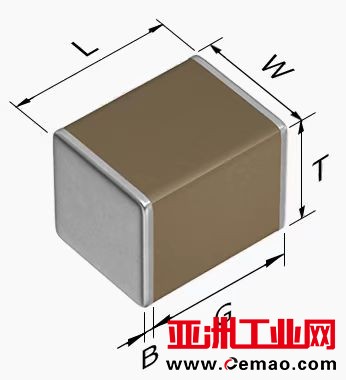

长度(L)	3.20mm ±0.20mm
宽度(W)	1.60mm ±0.20mm
厚度(T)	1.60mm ±0.20mm
端子宽度(B)	0.20mm Min.
端子间隔(G)	1.00mm Min.
推荐焊盘布局(PA)	2.10mm to 2.50mm(Flow Soldering) 2.00mm to 2.40mm(Reflow Soldering)
推荐焊盘布局(PB)	1.10mm to 1.30mm(Flow Soldering) 1.00mm to 1.20mm(Reflow Soldering)
推荐焊盘布局(PC)	1.00mm to 1.30mm(Flow Soldering) 1.10mm to 1.60mm(Reflow Soldering)
