TDK陶瓷贴片电容C3216X7R2J333K160AA

2024-08-23 20:11

价格:￥0.80/只
品牌:C3216X7R2J333K160AA 1206 X7R 630V 33NF 10%
额定电压:630V
容量:33NF
容差:10%
起订:2000只
供应:999999只
发货:3天内

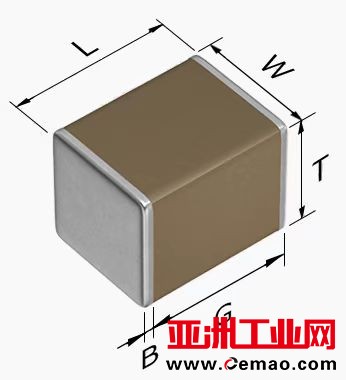

长度(L)	3.20mm ±0.20mm
宽度(W)	1.60mm ±0.20mm
厚度(T)	1.60mm ±0.20mm
端子宽度(B)	0.20mm Min.
端子间隔(G)	1.00mm Min.
推荐焊盘布局(PA)	2.10mm to 2.50mm(Flow Soldering) 2.00mm to 2.40mm(Reflow Soldering)
推荐焊盘布局(PB)	1.10mm to 1.30mm(Flow Soldering) 1.00mm to 1.20mm(Reflow Soldering)
推荐焊盘布局(PC)	1.00mm to 1.30mm(Flow Soldering) 1.10mm to 1.60mm(Reflow Soldering)
