TD陶瓷贴片电容C2012X7R1H475K125AC

2024-08-23 20:11

价格:￥0.80/只
品牌:C2012X7R1H475K125AC 0805 X7R 50V 4.7UF 10%
额定电压:50V
容量:4.7UF
容差:10%
起订:2000只
供应:999999只
发货:3天内

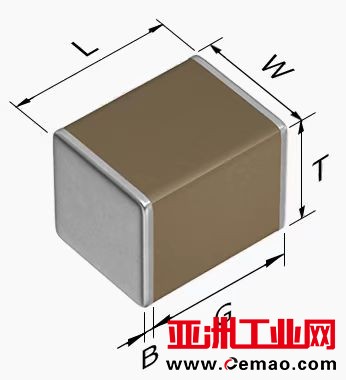

长度(L)	2.00mm +0.25,-0.15mm
宽度(W)	1.25mm +0.25,-0.15mm
厚度(T)	1.25mm +0.25,-0.15mm
端子宽度(B)	0.20mm Min.
端子间隔(G)	0.50mm Min.
推荐焊盘布局(PA)	1.00mm to 1.30mm(Flow Soldering) 0.90mm to 1.20mm(Reflow Soldering)
推荐焊盘布局(PB)	1.00mm to 1.20mm(Flow Soldering) 0.70mm to 0.90mm(Reflow Soldering)
推荐焊盘布局(PC)	0.80mm to 1.10mm(Flow Soldering) 0.90mm to 1.20mm(Reflow Soldering)
