品牌:美国RETZ瑞茨
品牌:RETZ
产地:美国
包装:木箱
起订:1台
供应:1000台
发货:3天内

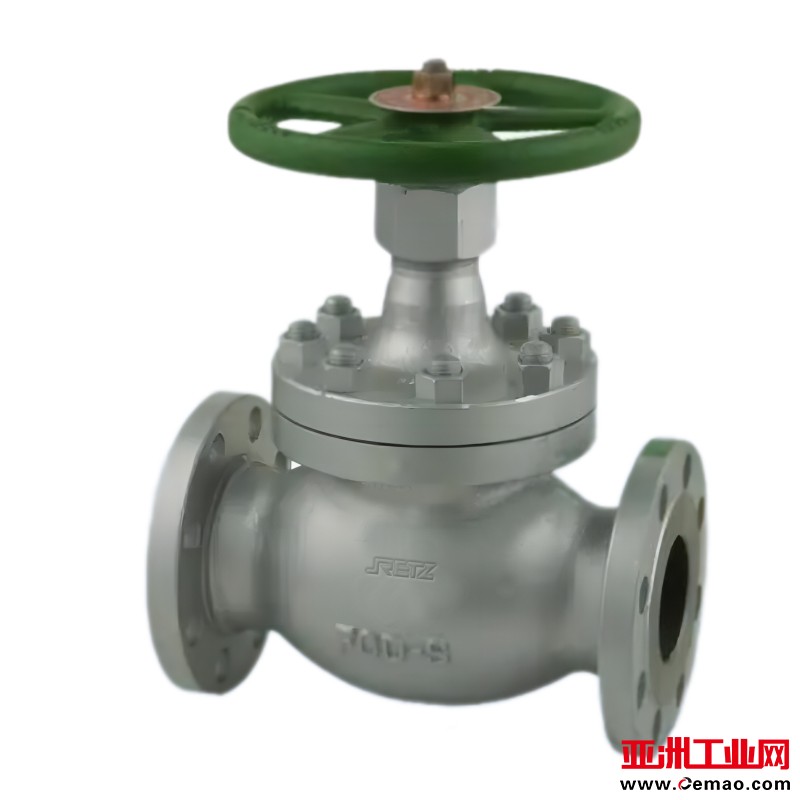

(氨液、氨气、氟利昂)氨用截止阀手轮顺时针方向转时，阀杆向下移动，阀瓣下降使密封面密合，将通路切断。逆转时则开启，阀杆提到上密封起作用 RETZ(Ammonia liquid, ammonia gas) When the hand wheel of the stop valve for ammonia is turned clockwise, the valve rod moves downward, the valve clack drops to make the sealing surface close, and the passage is cut off. When the valve is reversed, it will be opened, and the valve rod will be lifted to the highest point for sealing
增加了一个上密封.在阀门开启状态时,与填料一起两层密封作用,并对填料有一定的保护作用 ，并可带压更换复合软成形填料 RETZ An upper seal is added to the special stop valve for liquefied gas and fuel gas When the valve is open, it has a two-layer sealing effect with the packing, and has a certain protective effect on the packing, and can replace the composite soft forming packing under pressure
进口氨用截止阀主要特点DESIGN FEATURES
1、上密封装置中采用多级聚四氟乙烯密封材料，形成组合密封，确保阀门在使用期限内填料函无介质泄露，消除了普通阀门填料函密封薄弱、介质易外漏，甚至造成事故的可能。
2、密封面利用阀瓣中间加工一道凹槽添加主要聚四氟乙烯O型圈，构成双重密封，阀座304不锈钢堆焊而成，用在液氨、氨气站球罐管路作为对流量的调节。填料采用聚四乙烯，密封可靠、无外漏。
3、倒密封/自密封结构：阀杆上部密封加载弹簧，在上填料PTFE常久使用磨损借住弹簧力保持上填料不泄漏，内部阀杆倒密封设计构成双道密封：密封面上部添加一道∧型阀圈，阀体下部压制∧型PTFE密封圈，阀杆上升二道∧型结构紧扣，成功有效防止阀杆不外漏。
4、波纹管密封结构：阀杆中部采用不锈钢316L双重坚固耐用的波纹管密封设计（波纹管+填料），保证阀杆的零泄漏。没有流体损失，提高工厂设备安全。并符合国际密封标准。氨用截止阀在GB/T12235标准基础上制定企业标准。企标在材质选用、结构设计上完全根据氨气、燃气介质腐蚀特性和工况要求进行，各项技术参数指标优于明杆截止阀。
密封材料特点说明
聚四氟乙烯 PTFE
耐温（-196~120℃），耐腐∶耐强酸强碱、水和各种有机溶剂。无毒害/不粘附/高润滑/耐气候机械性质较软，有“塑料王”之称 Characteristics of sealing materials: temperature resistance (- 196~120 ℃), corrosion resistance: resistance to strong acids and alkalis, water and various organic solvents. No poison/no adhesion/high lubrication/weather resistance Mechanical property is soft, so it is called "the king of plastics"
巴氏合金 Babbitt
特点∶因其呈白色，又称白合金，低硬度轴转动的材料。熔点∶固相点温度为240℃，液相点温度为370℃，极限使用温度不得超过100℃，摩擦系数在有油时为0.005，无油时为0.28 Features: because it is white, also known as white alloy, it is a material with low hardness shaft rotation. Melting point: the solid phase point temperature is 240 ℃, the liquid phase point temperature is 370 ℃, the limiting service temperature shall not exceed 100 ℃, and the friction coefficient is 0.005 with oil and 0.28 without oil.
技术规范 Technical specifications
阀体：WCB、LCB、CF8
阀杆：20Cr13、F304
阀瓣：25#、LF2、F304
密封圈：PTFE
工作压力：PN16-PN40
规格：1/2-12”
工作温度：-20℃至120℃
连接方式：法兰
