品牌:美国RETZ瑞茨
品牌:RETZ
产地:美国
材质:不锈钢
起订:1台
供应:1000台
发货:3天内
发送询价

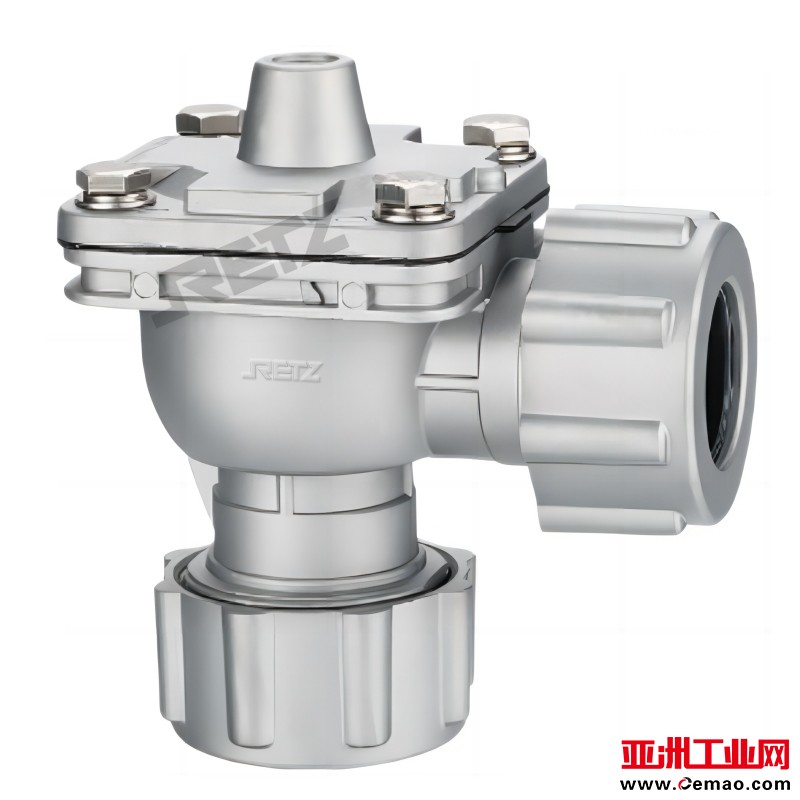

品牌：RETZ瑞茨/我们一直致力于流体控制和测控领域的持续创新，始于2005……进口气控式脉冲阀更改了脉冲阀的驱动方式，与远程先导控制盒连接，从而实现集中控制，露天防水的目的，也越来越受国内外市场的喜爱。远程先导控制盒安装在脉冲阀的上部中间位置，连接尼龙气管不超过2米，两头都配直通气管接头RETZ The pneumatic pulse valve has changed the driving mode of the pulse valve and is connected to a remote pilot control box, achieving centralized control and outdoor waterproofing. It is also increasingly popular in domestic and foreign markets. The remote pilot control box is installed in the middle of the upper part of the pulse valve. The nylon air pipe is not more than 2m long. Both ends are equipped with straight air pipe connectors
进口直通式电磁脉冲阀材质说明/Material Construction
阀体Body：ADC12铝合金 ADC12 die cast
先导组件Armature：430FR不锈钢等材料 430FR stainless steel
膜片Diaphragm：丁晴橡胶或氟橡胶 Nitrile or Viton
弹簧Spring：321不锈钢 321stainless steel
紧固件Fasteners：302不锈钢 302stainless steel
进口直通式电磁脉冲阀技术参数Technical Parameter
设计压力Design Pressure：0.2~0.8MPa
工作压力Working Pressure：0.3~0.6MPa
环境温度Ambient Temperature：常温：-25~60℃低温高温可定制Customized for Lower or Higher Temperature
相对湿度Relative Humidity：≤85%
使用介质Working Medium：清洁空气Clean Air
电压Voltage：AC220VIAC110V/AC24V/DC24V/DC12V Customized
防护等级Protection Class：IP65
RETZ电磁脉冲阀是一种专为布袋式除尘器配套使用而设计的专用电磁阀，产品函盖了直角式电磁脉冲阀、淹没式电磁脉冲阀、直通式电磁脉冲阀、气控脉冲阀、活塞式电磁脉冲阀、防爆系列脉冲阀等多种规格
