价格:￥0.00/台
品牌:美国RETZ瑞茨
品牌:RETZ
产地:美国
材质:不锈钢 黄铜
起订:1台
供应:1000台
发货:3天内

发送询价

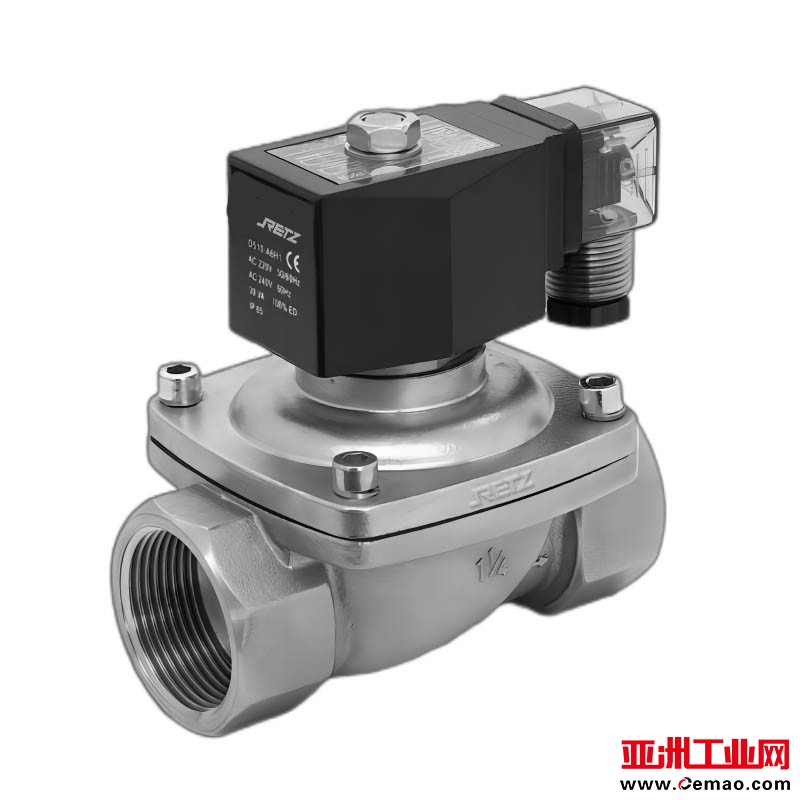

 品牌：RETZ瑞茨/我们一直致力于流体控制领域的持续创新，始于2005……进口真空电磁阀通常用于真空设备管路作通断,本产品广泛应用在工业炉窑、干燥设备、制机械、真空设备、制、水厂虹吸管路、航天、石油化工、电力装备、钢铁、电镀涂装、燃气燃油、环保设备、酿酒、吹灰除尘、纺织印染、暖通空调、食品、水处理、等控制系统等工作压力为负压的管道系统中Retz vacuum solenoid valve is usually used for on-off of vacuum equipment pipelines. This product is widely used in industrial furnaces, drying equipment, pharmaceutical machinery, vacuum equipment, pharmaceutical, water plant siphon pipelines, aerospace, petrochemical, power equipment, steel, electroplating and coating, gas fuel, environmental protection equipment, brewing, dust removal, textile printing and dyeing, HVAC, food, water treatment, and other control systems with negative working pressure in pipeline systems

进口真空电磁阀工作原理--Working principle of imported vacuum solenoid valve

常闭式：当线圈通电时，先导阀芯吸合，先导孔打开，阀上腔卸压，活塞靠下腔介质压力推动，电磁阀打开；当线圈断电时，先导阀芯靠弹簧复位，先导孔关闭，阀上腔由活塞节流孔增压和复位弹簧的推力，电磁阀关闭。

Normally closed: When the coil is energized, the pilot valve core is closed, the pilot hole is opened, the upper chamber of the valve is depressurized, the piston is pushed by the medium pressure in the lower chamber, and the solenoid valve is opened; When the coil is powered off, the pilot valve core is reset by the spring, the pilot hole is closed, and the valve upper chamber is pressurized by the piston orifice and the thrust of the reset spring, and the solenoid valve is closed.

常开式：当线圈通电时，先导阀芯靠弹簧复位，先导孔关闭，阀上腔由活塞节流孔增压和复位弹簧的推力，电磁阀关闭；当线圈断电时，先导阀芯靠弹簧复位，先导孔打开，阀上腔卸压，活塞靠下腔介质压力推动，电磁阀打开。

Normally open type: When the coil is energized, the pilot valve core is reset by the spring, the pilot hole is closed, and the valve upper chamber is pressurized by the piston throttle hole and the thrust of the reset spring, and the solenoid valve is closed; When the coil is powered off, the pilot valve core is reset by the spring, the pilot hole is opened, the upper chamber of the valve is depressurized, the piston is pushed by the medium pressure in the lower chamber, and the solenoid valve opens.

进口真空电磁阀结构特点--

动作响应迅速；

独特设计、外观精美；

密封性好、开关迅速；

专制线圈、不易烧毁；

进口真空电磁阀选型参数--

产品规格：3/8-4"

阀体材质：不锈钢。

防护性能：防水、防爆（DⅡCT5、ExdⅡCT5、ExmbⅡCT4、ExdⅡCT4）、防腐。

防护等级：IP67、IP65

介质温度：-40~+450℃。

环境温度：－20～＋50℃

阀芯材质: 均为不锈钢

接线方式：接线座式、引线式、插头式

控制方式：常开、常闭

电源电压：DC12~127V；AC36~380V

连接方式：内螺纹、法兰

适用介质：粘度：≤21m㎡/s，（大于21时需定制）气、水、油、蒸汽、燃气、腐蚀性气态或液态流体。

泄 漏 量：零
