直径:1.0-1.2mm
净重:7公斤
品牌:伊萨
起订:7公斤
供应:1000公斤
发货:3天内
立即购买

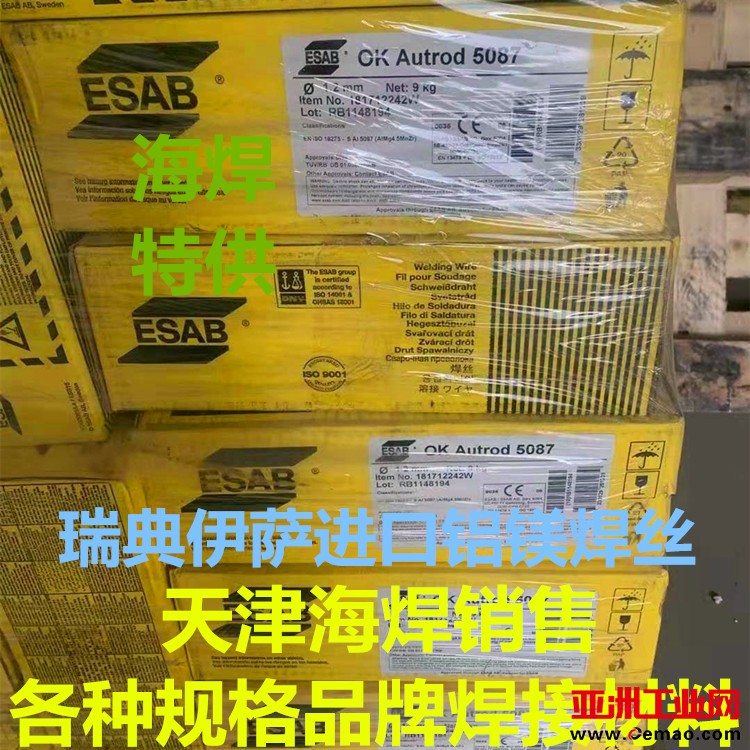

OK AUTROD 5087瑞典伊萨进口铝镁焊丝ER5087气保焊丝
销售瑞典伊萨进口铝镁焊丝 气保耐磨芯焊丝 不锈钢气保焊丝 镍基焊条镍基焊丝 低合金焊条焊丝 高强钢焊条焊丝 铜焊条焊丝 铸铁焊条焊丝 耐磨焊条焊丝等进口焊条焊丝
Continuous solid wire suitable for welding aluminium alloys with up to 5% Mg and alloys where a higher tensile strength is required. The alloying element Zr produces improved resistance to hot cracking during solidification.
Typical Tensile Properties
| Condition | Elongation | Tensile Strength | Yield Strength |
| As Welded | 30 % | 280 MPa | 130 MPa |
Debbbbbbbb Data
| Current | Debbbbbbbb Rate | Diameter | Voltage | Wire Feed Speed |
| 90-210 A | 0.0-0.0 kg/h | 1.0 mm | 15-26 V | 0.0-0.0 m/min |
| 140-260 A | 0.0-0.0 kg/h | 1.2 mm | 20-29 V | 0.0-0.0 m/min |
| 190-350 A | 0.0-0.0 kg/h | 1.6 mm | 25-30 V | 0.0-0.0 m/min |
Classifications
| Wire Electrode | SFA/AWS A5.10 : ER5087 （天津海焊） EN ISO 18273 : S Al 5087 (AlMg4,5MnZr) |
Approvals
| Society | CE |
| Grade | EN 13479 |
| Approvals are based on factory bbbbbbbb. Please contact ESAB for more inbbbbation. |
Consumable Characteristics
| Alloy Type | AlMgMn |
Typical Weld bbbbl Analysis %
| Wire Combbbbbbbb | ||||||||||||||
| Al | Cr | Cu | Fe | Mg | Mn | Si | Ti | Zn | Zr | |||||
| Rem % | 0.08 % | 0.01 % | 0.12 % | 4.7 % | 0.8 % | 0.04 % | 0.08 % | 0.01 % | 0.11 % |
|||||
