价格:￥180.00/公斤
直径:3.2-4.0mm
净重:5公斤
品牌:伊萨
起订:5公斤
供应:1000公斤
发货:3天内

立即购买

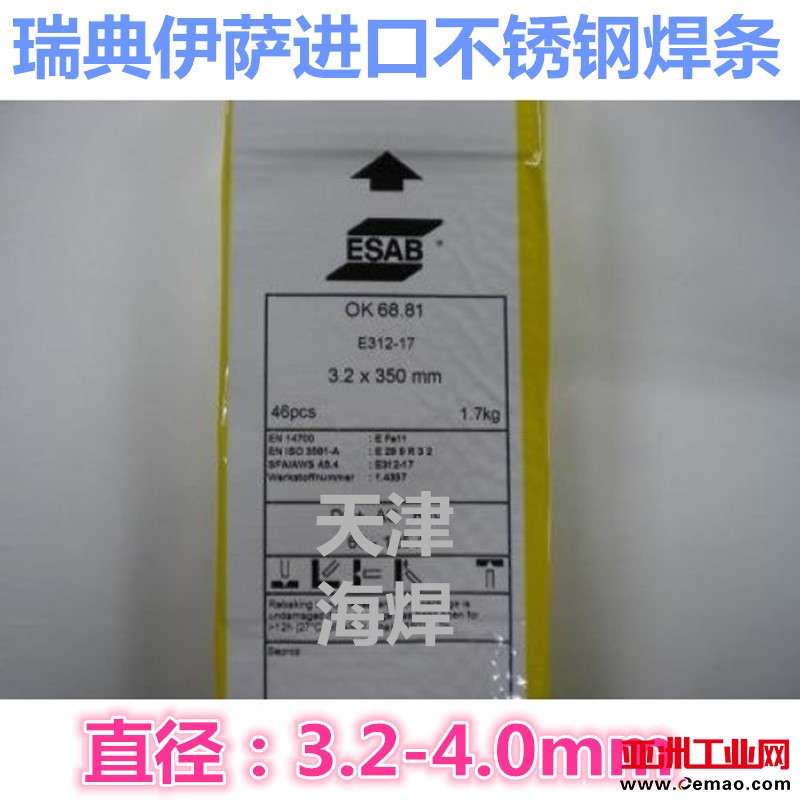

 瑞典伊萨ESAB焊条OK68.81 /E312-17不锈钢电焊条

OK Autrod 13.91瑞典伊萨耐磨焊丝OK Autrodur 56 GM堆焊焊丝盾构机刀盘耐磨焊丝MSG-6-GZ-C-60G耐磨合金焊丝

销售瑞典伊萨进口铝镁焊丝 气保耐磨实芯芯焊丝 不锈钢气保焊丝 镍基焊条镍基焊丝 低合金焊条焊丝 高强钢焊条焊丝 铜焊条焊丝  铸铁焊条焊丝 耐磨焊条焊丝等进口焊条焊丝



OK 68.81 SMAW Type Rutile-acid OK 68.81 is a high-alloyed electrode which deposits a ferritic-austenitic duplex weld bbbbl with approx. 40% ferrite. Resistant to stress corrosion and highly insensitive to dilution. Good scaling resistance up to 1150�C. OK 68.81 is used for joining dissimilar steels, steels with reduced weldability and buffer layers prior to hardfacing. Applications: rolls, forging dies, hot-work tools, dies for plastics and so on. Welding current, A DC+, AC OCV 60 V

Classifications	Approvals	Typical all weld bbbbl combbbbbbbb	Typical properties all weld bbbbl
SFA/AWS A5.4 E312-17 EN 1600 E 29 9 R 3 2 Werkstoff Nr. 1.4337		C 0,12 Si 0,7 Mn 0,8 Cr 29,0 Ni 9,8 Mo <0,5 Cu <0,3	Redrying temperature, �C 350 Redrying time, hours 2 Yield stress, MPa 610 Tensile strength, MPa 790 Elongation, % 22 Elongation, % 22 Ferrite content FN 50-80 Weld bbbbl hardness, a w 220-240 HV Machinability Fair Charpy V Test temps, �C Impact values, J +20 30

Diameter, mm	2,0	2,5	3,2	4,0	5,0
Length, mm	300	300	350	350	350
Arc voltage, V	22	24	25	26	28
Welding current, A	40-60	50-85	60-125	80-175	150-240
N. Kg weld bbbbl/kg electrodes	0,64	0,64	0,62	0,62	0,65
B. No. of electrodes/kg weld bbbbl	123,0	78,0	42,0	26,0	16,5
H. Kg weld bbbbl/hour arc time	0,7	0,9	1,3	2,0	3,2
T. Burn-off time, secs/electrode	41	48	65	66	68
